Installation Instructions:

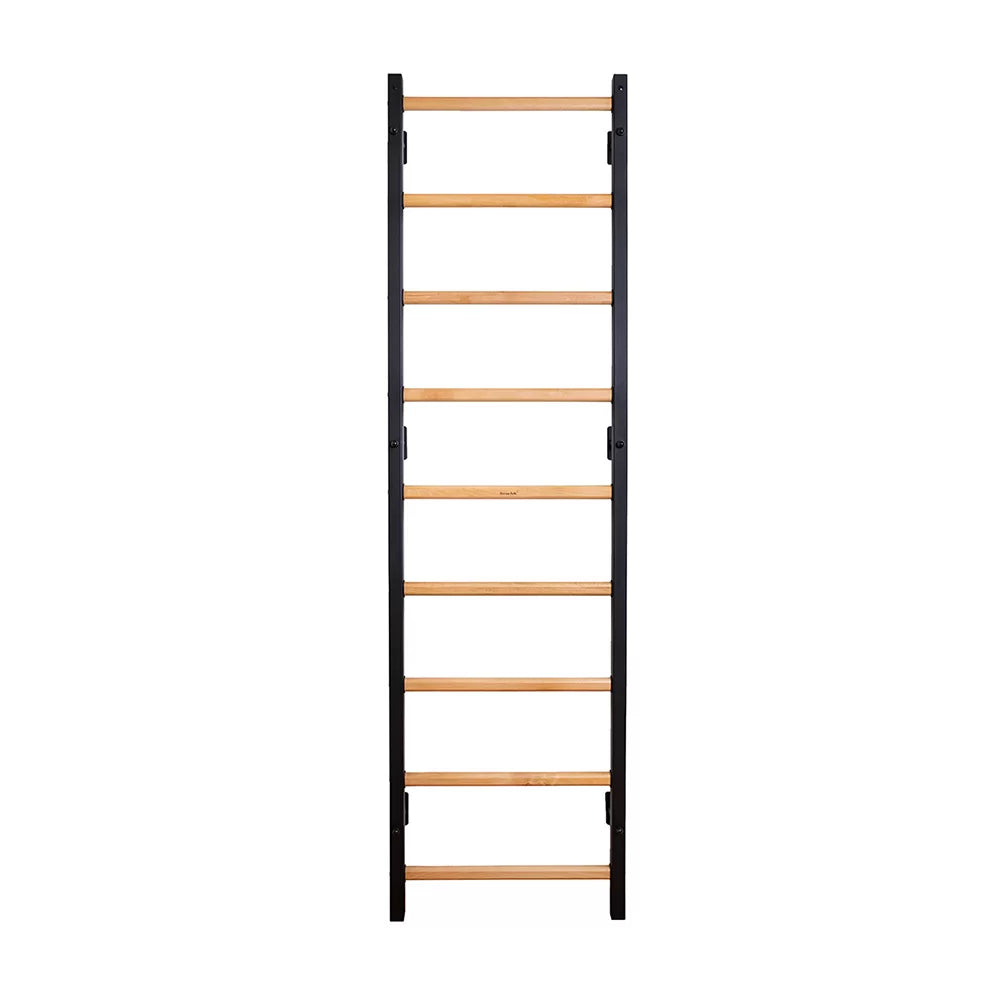

BenchK 700 Series 7 - Wall Bars - Black
When the design is done right, you don't have to choose between aesthetics and functionality. These wall bars can seamlessly fit into any interior thanks to a well thought through contrasting mix of matte steel with beech wood. No need to hide it in the garage.
Multifunctional BenchK wall bars fit perfectly into a modern home, office, gym, fitness or yoga studio, rehabilitation center, hotel room, or any other public area.
This versatile exercise tool provides a full bodyweight workout with a wide range of exercise options - spine flexion and extension, joint mobility, strength training, core conditioning, stretching, handstands, cardio, TRX training and many more.
Add-ons:
Not included
Additional elements can be added to BenchK wall bars to create a compact training,working and playing area that takes up as little as 1 square meter, such as: adjustable steel 6-grip pull-up bar, fixed steel 6-grip pull-up bar, dip bar, that can also serve as a barbell holder, workout bench, gymnastic rings and/or a climbing rope with a swing.
Personalize it according to your lifestyle: your life, your rules, your design.
Specification:
- The set includes: wall bars (gymnastic ladder)
- Maximum user weight: 150 kg (330 lbs)

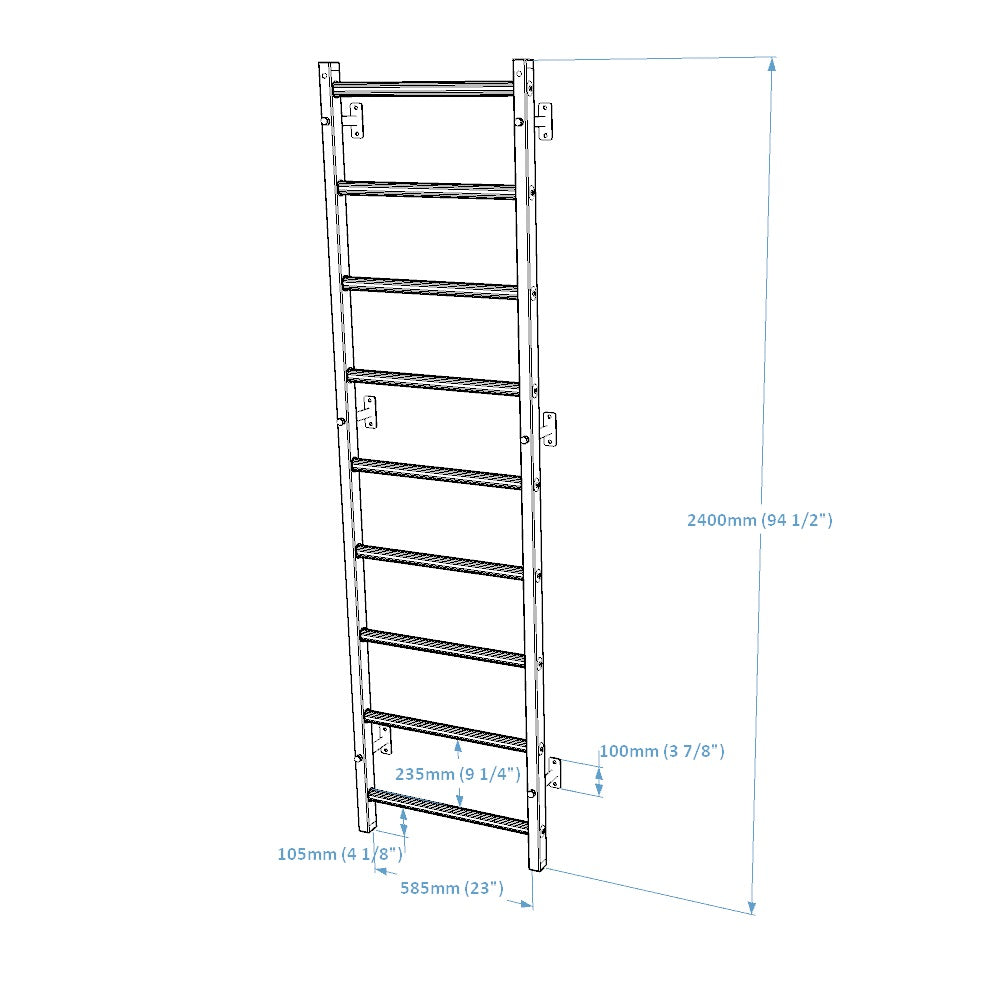

- Width: 67 cm (26 3⁄8″)
- Height: 240 cm (94 ½″)
- Weight: 20kg (44 lbs)
- Minimum installation height: 250 cm (98 ½″)
- Material: steel, solid beech wood
- Colour: black matt
- Steel profiles: 40 x 50 mm and 2mm thick, powder coated.
- Cuts and holes are made by laser cutter, which guarantees precision and ideal shape.
- 9 oval beech wood rungs
- Wooden rungs hand oiled with German organic linen-based oil, which is approved for contact with food.
- Warranty for metal elements: 10 years
- Warranty for other elements: 2 years
- Mounting method: to the wall
- Includes assembly kit.
Does not include wall mounting screws and plugs, as their type depend on the type of wall. - In case of the installation of BenchK 7 Series to the wall made of concrete, solid bricks, solid silicate brick, please check the BenchK PS12 (min. wall thickness 12cm / 4.8in).
In case of the stud wall construction choose BenchK WHB+S8. - Complies with PN-EN 12346:2001, PN-EN 913:2019-03 norms for professional gymnastic equipment.
- Made in Poland.
We offer mounting solutions for your BenchK! Discover them here!

BenchK WHB Wall Holder for Series 7 Black Wall Bars
View BenchK Mounting attachments for additional items that can be used with BenchK to improve your workout experience and help you reach your fitness goals.
These brackets are only for the wooden studs frame construction.
If stud wall - BenchK WHB.
If standard concrete, brick, etc. - Screws and plugs.








Specifications | |
---|---|
Width | 26.125" |
Height | 94.5" |
Minimum Ceiling Height | 98.5" |
Mount Type | To Wall |
Assembled Weight | 44 lbs |
Maximum user weight | 330 lbs |
Colour | black |
Material | steel, beech wood |
BenchK Series 7 wall bars assembly instructions >> |
